Framer Element Settings via HTML, CSS & JS Basics

In this article, I’ll guide you through a deeper understanding of how element properties are configured in Framer, starting from the fundamental principles of HTML, CSS, and JavaScript. While Framer promotes itself as a “no-code” visual website builder, its interface is fundamentally rooted in the structural logic of the web’s three core front-end languages. You can think of Framer’s right-hand property panel as a visual reflection of HTML structure, CSS styling, and JavaScript behaviors—only instead of writing code, you achieve results through drag-and-drop actions, selections, and parameter adjustments.

In my previous tutorials, I’ve often emphasized that having a basic knowledge of front-end development not only helps you get started with Framer more efficiently but also gives you greater control and better judgment when dealing with complex layouts or interactive components. This kind of foundational understanding boosts your productivity and is the key to overcoming the limitations of visual editing in Framer, unlocking advanced customization.

Next, we’ll start by examining the most common element properties and gradually break down the underlying HTML tags, CSS rules, and JavaScript behaviors behind them—helping you develop the ability to interpret Framer from a front-end perspective.

The HTML Settings Section in Framer

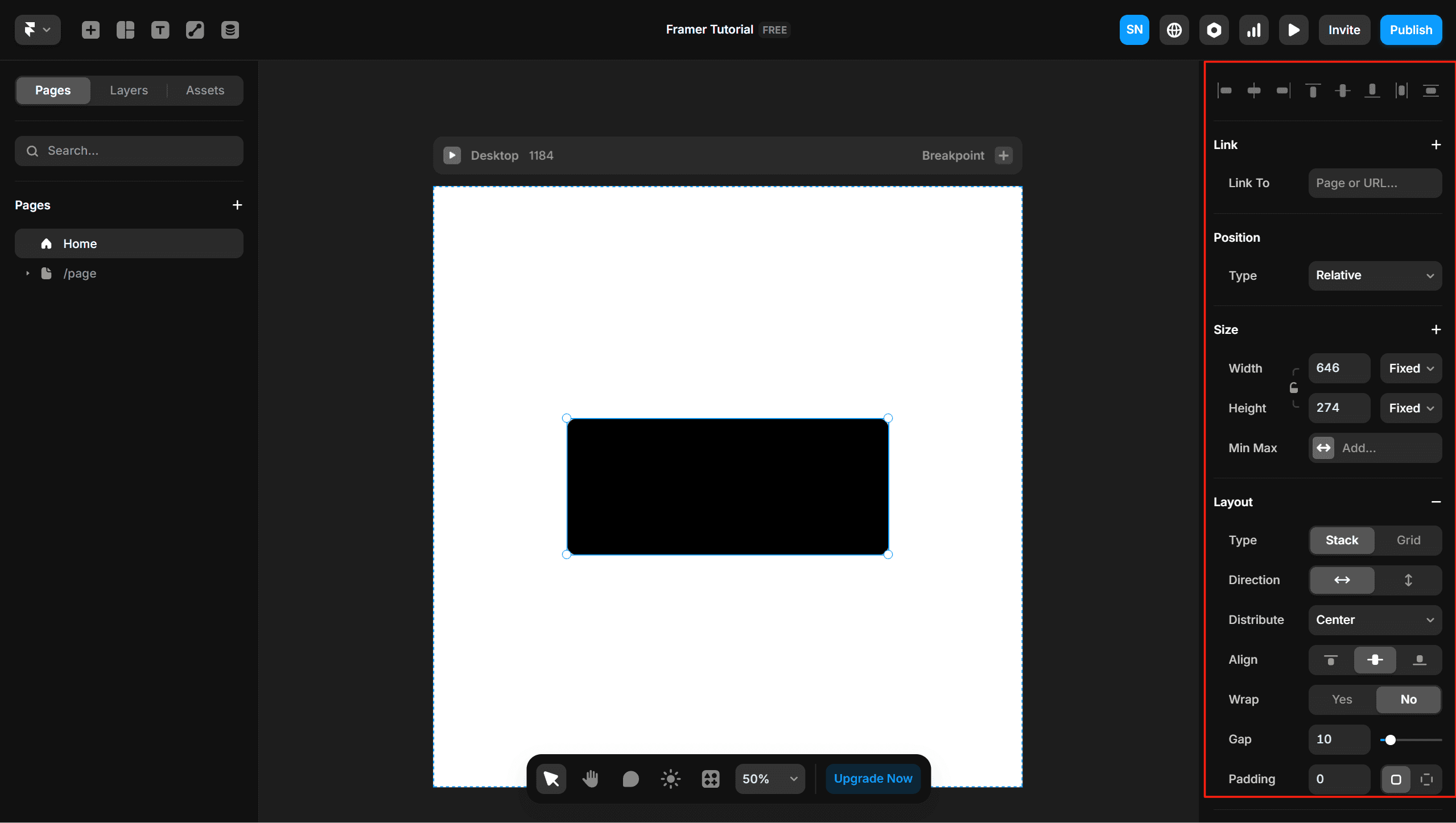

In Framer right-hand property panel, the topmost sections—Align, Position, Size, and Layout—are essentially visual extensions of HTML structure. Although these settings don’t directly expose HTML tags, each adjustment corresponds to a specific HTML attribute or structural semantic behind the scenes.

1 HTML Equivalents of Alignment and Layout Settings

Framer alignment and layout settings typically correspond to structural HTML tags combined with layout hierarchies created using CSS Flexbox or Grid. For example, when you center an element horizontally or distribute items evenly within a container, Framer is essentially generating a structure similar to the following behind the scenes:

<div class="container">
  <div class="item">Content</div>
</div>

And the .container class might be configured as:

.container {
  display: flex;
  justify-content: center; /* Horizontal center */
  align-items: center;     /* Vertical center */
}

The layout options in Framer, such as "Align Center" and "Distribute Horizontally," are visual representations of this HTML + CSS collaboration.

1). Example — Center-Aligned Element Settings

When you select an element in Framer and click horizontal and vertical center alignment in the right-hand panel, the resulting HTML structure is typically similar to the following:

<div class="parent">
  <div class="child">Button</div>
</div>

.parent {
  display: flex;
  justify-content: center;
  align-items: center;
}

This shows that Framer essentially does not “depart from HTML,” but rather helps you abstract these standard layout settings into actionable buttons and dropdown menus.

2 HTML Mapping of Position and Size Settings

In Framer, Position and Size are also visual representations of HTML attributes.

1). Position

When selecting Absolute or Relative positioning, the HTML/CSS in Framer corresponds roughly to the following:

<div class="box">Content</div>

.box {
  position: absolute;
  top: 20px;
  left: 50px;
}

The specific position you set by dragging actually corresponds to setting coordinate properties like top and left.

2). Size

When adjusting an element’s width and height, Framer is actually modifying the HTML element’s width and height properties, for example:

.box {
  width: 200px;
  height: 100px;
}

If you select "Fit Content," the HTML element’s size will adapt to its content, which is equivalent to not setting a fixed width or height, or using auto:

.box {
  width: auto;
  height: auto;
}

3 The Relationship Between Framer Layout Settings and HTML Structure

Framer Layout options are also implemented by adding nested HTML elements combined with Flex or Grid, for example:

<div class="stack">
  <div class="item">A</div>
  <div class="item">B</div>
  <div class="item">C</div>
</div>

.stack {
  display: flex;
  flex-direction: column;
  gap: 16px;
}

This structure in Framer is created by drawing a Frame, setting it to a Stack layout type, and adding multiple elements—without needing to write any HTML manually. However, the layout method and semantics are essentially the same as traditional hand-coded HTML.

From the explanation above, it’s clear that the parts of Framer’s right-hand property panel related to HTML are essentially graphical encapsulations of standard web front-end structures. Every adjustment to alignment, position, or size corresponds to syntax and logic found in HTML and CSS. Understanding these mappings not only helps you control page structure more precisely but also lays a solid foundation for using custom code later and enhancing the flexibility of your Framer projects.

CSS Settings Section in Framer

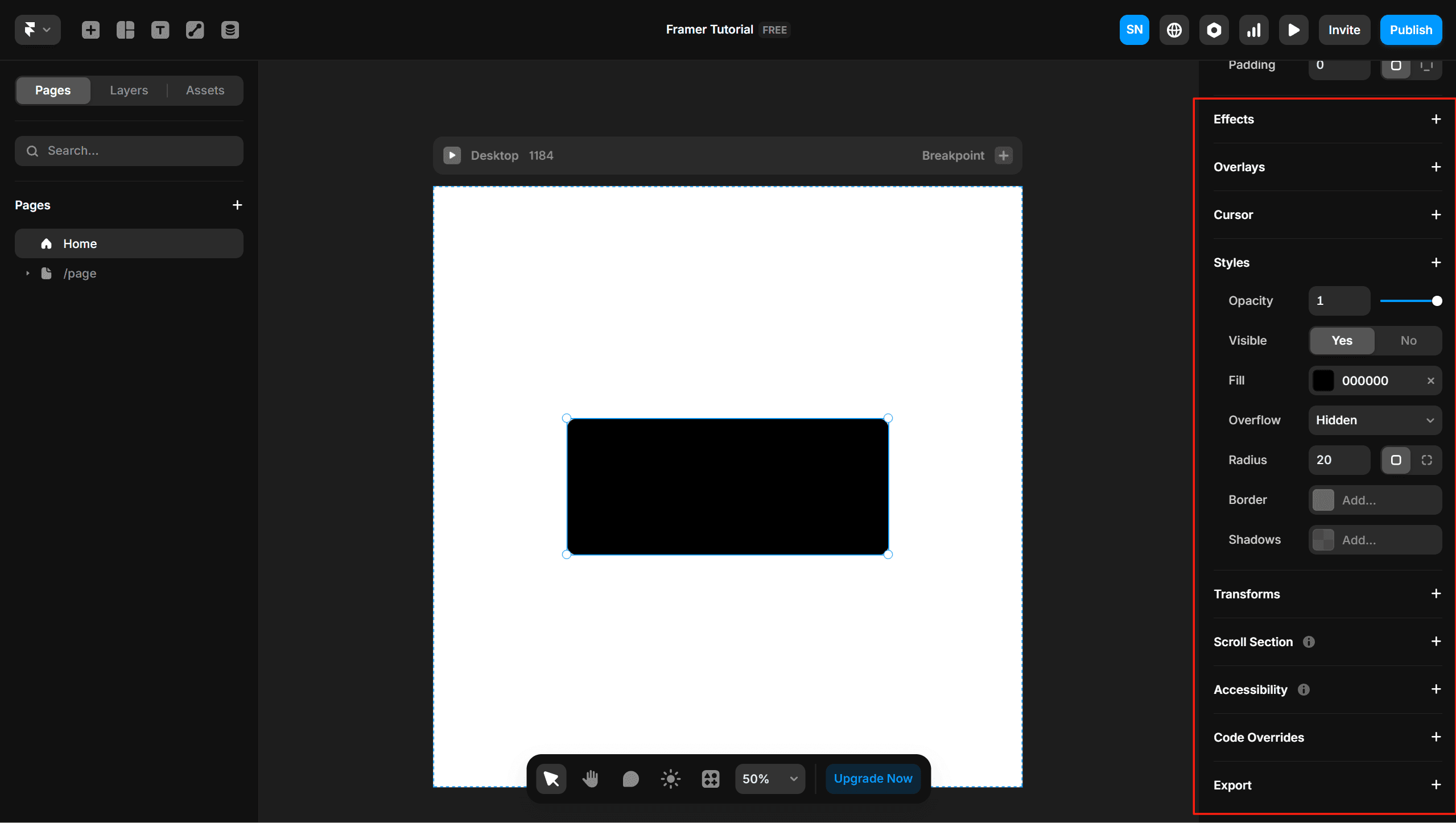

In Framer property panel, starting from the Effects section, several of the following settings are visual encapsulations at the CSS level. Although these settings are presented through a graphical interface, each parameter actually maps to standard CSS style rules.

In this section, we will analyze in detail several settings modules in Framer that are closely related to CSS, and provide their corresponding CSS code, helping you build an accurate understanding from the underlying perspective every time you make adjustments.

1 Effects

The Effects section in Framer is mainly used to add transition animations and interactive feedback effects to elements in specific states, such as scroll-in animations, hover effects, press (click), drag, or looped animations. At the core, these effects primarily map to CSS properties like transition, transform, and animation. Some effects also utilize JavaScript for scroll listening and event binding.

1). Common Effect Types and Their Corresponding CSS Behaviors

(1). Appear Animation

This effect is used to animate an element’s appearance when the page loads or when it enters the viewport. It can be mapped to the following CSS:

.box {
  opacity: 0;
  transform: translateY(20px);
  transition: all 0.4s ease;
}

.box.appear-active {
  opacity: 1;
  transform: translateY(0);
}

When an element scrolls into the viewport, Framer adds an internal class like .appear-active to trigger this CSS transition effect.

(2). Hover Effect

When the user hovers the mouse over an element, Framer triggers animation changes such as color, size, or opacity adjustments:

.button {
  transition: background-color 0.3s ease, transform 0.3s ease;
}

.button:hover {
  background-color: #000;
  transform: scale(1.05);
}

Framer provides visual controls for hover behaviors, so you don’t need to write the above code manually.

(3). Press (Click Feedback)

Interactions such as shrinking or pressure effects on click usually map to:

.button:active {
  transform: scale(0.95);
}

After setting this option, Framer automatically binds the animation state changes for the press (click) interaction.

(4). Loop (Continuous Animation)

This section usually corresponds to infinitely repeating @keyframes animations:

@keyframes pulse {
  0% { transform: scale(1); }
  50% { transform: scale(1.05); }
  100% { transform: scale(1); }
}

.box {
  animation: pulse 2s infinite;
}

Framer allows you to set the animation duration, delay, and number of loops (infinite by default).

(5). l Scroll Animation / Scroll Transform / Scroll Speed

Scroll-driven effects like these cannot be fully achieved with CSS alone. They typically require JavaScript along with Intersection Observer or scroll event listeners to modify styles dynamically. Framer encapsulates these behaviors through its internal mechanisms, for example:

window.addEventListener("scroll", () => {
  const scrollTop = window.scrollY;
  element.style.transform = `translateY(${scrollTop * 0.3}px)`; // Scroll Speed
});

Framer Scroll Transform and Scroll Speed features essentially allow elements to automatically move, scale, or change opacity based on scroll progress.

2 CSS Rules Mapped from the Styles Section

Framer Styles panel is a comprehensive encapsulation of standard CSS styling for HTML elements. It covers settings such as typography, colors, border radius, borders, background images, and more—virtually every option can be directly translated into CSS declarations.

1). Typography and Color

.text {
  font-size: 16px;
  font-weight: 600;
  color: #333;
}

In Framer, changing the font size, weight, or color corresponds to modifying these CSS rules.

2). Border and Border Radius Settings

.button {
  border: 1px solid #ccc;
  border-radius: 12px;
}

Framer allows you to set different border-radius values for each of the four corners and supports no border or applying styles to specific sides only.

3). Background Settings

Background colors and gradients are also mapped to the corresponding background property:

.banner {
  background: linear-gradient(90deg, #ff8a00, #e52e71);
}

4). Transforms and Their Corresponding CSS Properties

Framer Transforms panel allows users to rotate, scale, skew, and move elements. These actions generate the following CSS:

.icon {
  transform: rotate(15deg) scale(1.2) translateX(10px);
}

These transform effects support combined stacking, enabling more creative visual effects for page elements.

3 Relationship Between Scroll Section and CSS

Although the Scroll Section is more focused on interaction settings functionally, its visual effects often involve combinations of position: sticky, overflow, and scroll-triggered animation and transform.

1). Example of Fixed Scroll Position

.section {
  position: sticky;
  top: 0;
}

By setting a section as a Scroll Section, Framer is effectively specifying its special positioning behavior during scrolling.

4 A Structural Understanding of CSS Enhances Precise Control in Framer

By deeply analyzing Framer’s Effects, Styles, Transforms, Scroll Section, and other modules, we can see that these settings can be fully mapped to standard CSS style declarations. This “visual CSS authoring” experience greatly lowers the front-end barrier. However, if you possess a structural understanding of CSS, you’ll be able to more freely control visual presentation, avoid conflicts, accurately reproduce design details, and even implement deeper customizations when needed through Code Overrides or Custom CSS.

5 Clear Distinction Between Effects and Styles Functions

In Framer, the Effects module primarily handles the visual implementation of behavior-triggered animations. While it also uses CSS animation properties (or JavaScript to control style changes) behind the scenes, it focuses more on “state-driven visual feedback.” In contrast, traditional static visual styles—such as typography, borders, and backgrounds—are concentrated in the Styles module.

Mastering this distinction will help you understand Framer’s property architecture more systematically and make it easier to correctly connect the corresponding CSS or JavaScript behaviors when you need to extend with custom code.

JavaScript Settings Section in Framer

Although Framer emphasizes a “no-code” website building experience, its underlying logic for handling interactive behaviors still heavily relies on JavaScript. Whether it’s switching component variants, binding variables, or creating interactions like click, scroll, and hover events, Framer internally builds a JavaScript-based event listening and state response system.

This section will start from Framer’s interaction system (Variants, Variables, Interactions) to analyze the JavaScript behaviors behind each setting and simulate the equivalent logic through code snippets.

1 Component Variants and State Switching

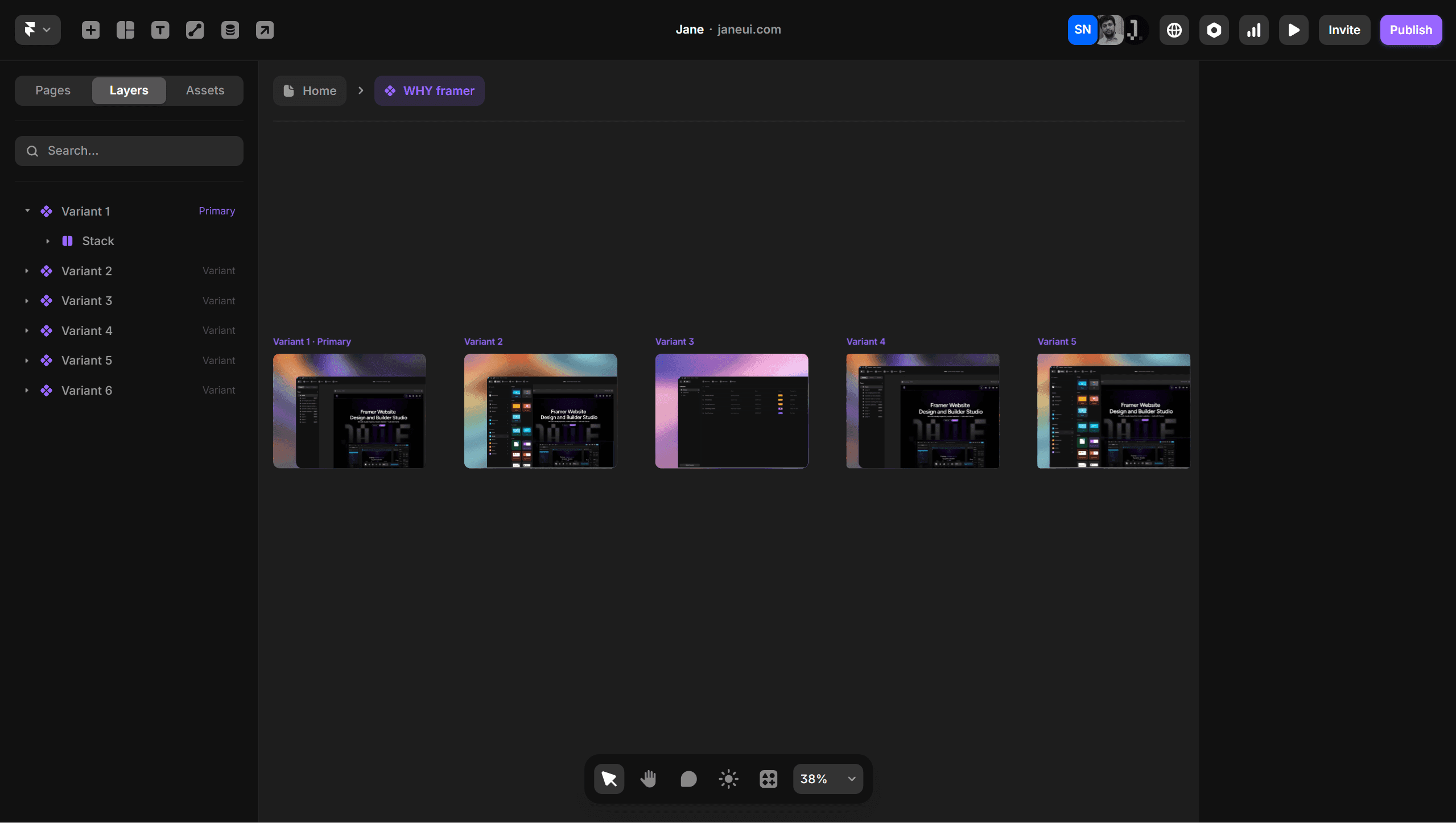

Framer Variants are used to define multiple visual states for the same component. In front-end development, this corresponds to switching between different classes or styles. Framer automatically animates transitions between component states, which is essentially driven by JavaScript controlling style changes.

1). Example — Button Toggle Between Two Variants

After setting Default and Hovered variants for a button in Framer, and defining the interaction “switch to Hovered on mouse enter,” the equivalent JavaScript is as follows:

const button = document.querySelector(".button");

button.addEventListener("mouseenter", () => {
  button.classList.add("hovered");
});

button.addEventListener("mouseleave", () => {
  button.classList.remove("hovered");
});

Corresponding CSS Example:

.button {
  background-color: #000;
  color: #fff;
  transition: all 0.3s ease;
}

.button.hovered {
  background-color: #fff;
  color: #000;
}

Framer internally manages component class names or style variants through a state system and automatically handles transition animations.

2 Binding Logic of Variables in Components

In Framer, variables are typically used to store the current state of a component (e.g., whether it is active, the current selection, boolean values controlling visibility, etc.). These variables are set through the visual panel and linked to interaction logic.

1). Example — Toggling Variable to Control Visibility

You can create a variable isOpen and bind it to a component’s visibility, then change its value through a button click event. The corresponding JavaScript logic is as follows:

let isOpen = false;

const modal = document.querySelector(".modal");
const toggleBtn = document.querySelector(".toggle");

toggleBtn.addEventListener("click", () => {
  isOpen = !isOpen;
  modal.style.display = isOpen ? "block" : "none";
});

In Framer, all of this can be achieved through variable binding and click interaction settings, without the need to explicitly write this code.

3 Interactions and JavaScript’s Event Response Mechanism

In Framer, Interactions are encapsulations of the JavaScript event system and are divided into:

• New Transition: Handles switching between variants (such as from Default to Hovered);

• New Event: Binds a behavioral event, such as click, scroll, hover, or timer trigger, to execute a visual response or update a variable.

4 Creating Typical Interaction Logic with Interactions

1). Example — Click Button to Show Popup

Set up the following interaction logic in Framer:

Click Button → Set variable isOpen = true → Popup variant switches from “hidden” to “visible.” The corresponding JavaScript is:

let isOpen = false;

const popup = document.querySelector(".popup");
const trigger = document.querySelector(".open-btn");

trigger.addEventListener("click", () => {
  isOpen = true;
  popup.classList.add("visible");
});

With CSS:

.popup {
  opacity: 0;
  pointer-events: none;
  transition: opacity 0.3s ease;
}

.popup.visible {
  opacity: 1;
  pointer-events: auto;
}

5 Advanced Interactions: JavaScript Mapping of Scroll-based Animations

Setting Scroll Transform or Scroll Speed in Framer essentially simulates listening to scroll events and dynamically updating element styles in real time:

1). Example — Changing Opacity Based on Scroll Distance

const fadeElem = document.querySelector(".fade-in");

window.addEventListener("scroll", () => {
  const scrollY = window.scrollY;
  fadeElem.style.opacity = Math.min(1, scrollY / 300);
});

This logic can be accomplished in Framer by visually setting the scroll response range using sliders, without the need to explicitly write event listeners.

6 JavaScript Is the Core Backbone of Framer’s Behavior System

Although Framer provides an intuitive and user-friendly interaction configuration interface, its underlying implementation still relies on JavaScript for state management, event listening, and animation triggering. Understanding this underlying logic will not only help you correctly grasp how variants and variables work but also enable you to more proficiently extend Framer’s native capabilities when using Code Components or Code Overrides.

Conclusion

Through the detailed explanation in this article, I believe you have developed the ability to systematically understand the logic behind Framer’s element settings panel from the perspectives of HTML, CSS, and JavaScript. While Framer offers a powerful visual operation experience, truly mastering its underlying mechanisms will make handling complex page layouts, component variants, or custom interactions much easier.

Whether it’s page structure alignment and positioning, dynamic presentation of visual styles, or interaction logic driven by variables and events, they all fundamentally originate from the three core web front-end languages. What Framer does is encapsulate these development details into an intuitive and controllable website-building interface.

If you want to deepen the integration of Framer flexibility with a solid understanding of front-end logic, feel free to follow Jane Framer Studio — we are dedicated to creating Framer websites that combine visual aesthetics with technical strength. If you have customization needs or are looking for a trustworthy design and development partner, please contact us. We look forward to exploring more creative website possibilities with you.
